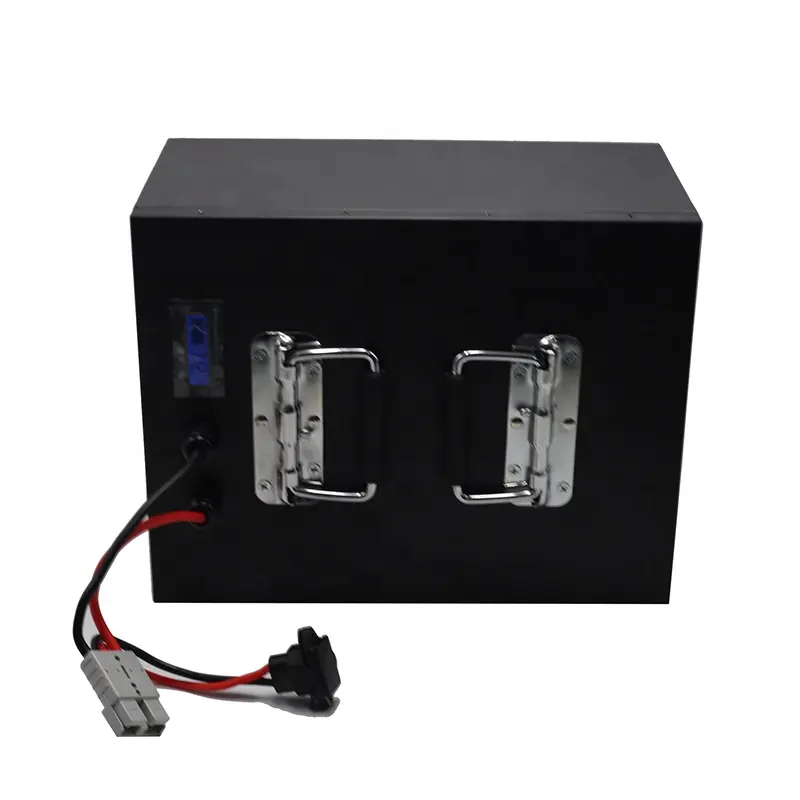

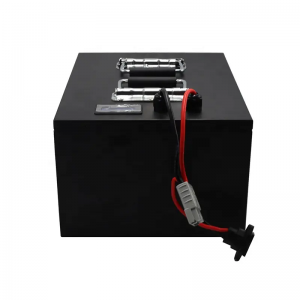

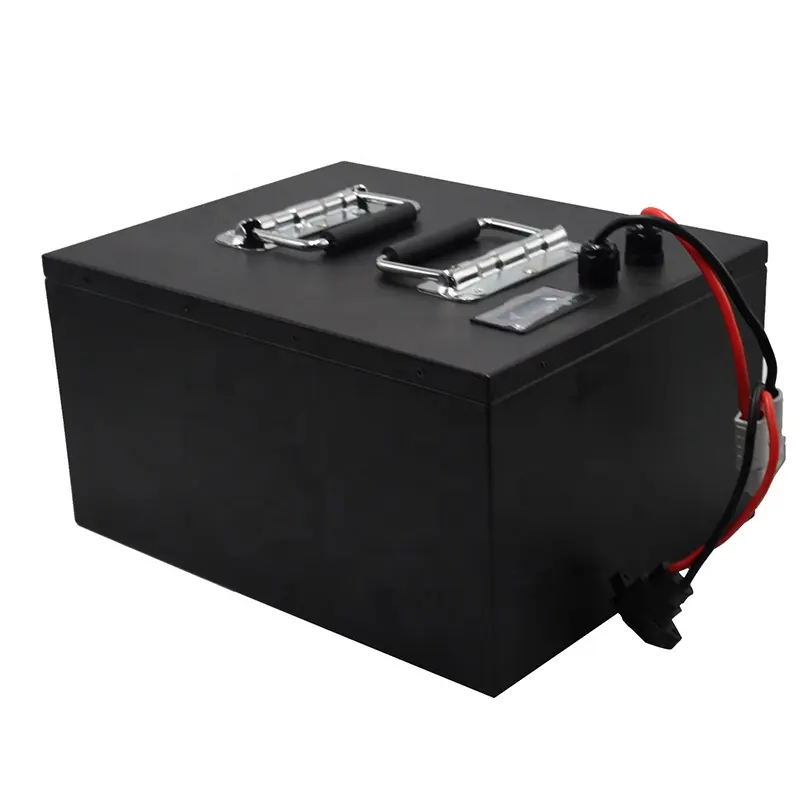

Prilagođena LiFePO4 baterija 72v 60ah litij-ionska baterija za električna vozila za EV automobile

2023-06-06 02:13

Specifikacija

Naziv robne marke	SVE U JEDNOM
Model	AIN7260
garancija	5 godina
Nazivni napon	76.8V
Nominalni kapacitet	[email protected]/customize
energija	4416Wh
Unutarnji otpor	≤50mΩ
Ciklus Život	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Samopražnjenje	≤3,5% mjesečno pri 25 ℃
Maks. Napon punjenja	87.6 V
Način punjenja	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Struja za punjenje	30A
Maks. Struja punjenja	60A
Prazna struja	30A
Max. discharge Continuous Current	60A
Maks. Pulsna struja	120A(<3S）
Ispuštanje graničnog napona	60V
Temperatura punjenja	0 ℃ do 45 ℃ (32 ℉ do 113 ℉) @ 60 ± 25% relativne vlažnosti
Temperatura pražnjenja	-20 ℃ do 60 ℃ (-4 ℉ do 140 ℉) @ 60 ± 25% relativne vlažnosti
Temperatura skladištenja	0 ℃ do 45 ℃ (32 ℉ do 113 ℉) @ 60 ± 25% relativne vlažnosti
Otpornost na vodenu prašinu	IP55
Ćelija i format	LFP  60AH 24S1P/customize
Kućište	Metal Case
Dimenzija (D * Š * V * TH)	prilagoditi
Težina	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Način punjenja	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Potvrda	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Podsjetnik

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

primjena

Naša tvornica

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

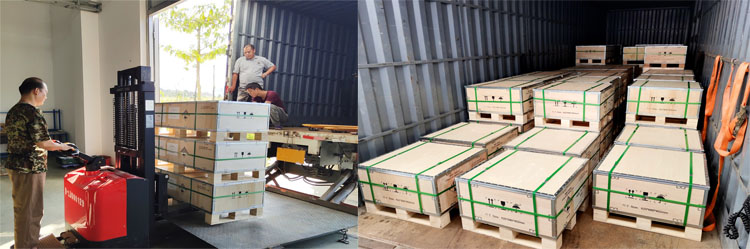

Pakiranje i otprema

Pakiranje

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

dostava

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Pitanja

P: Kako da platim? Koje načine plaćanja prihvaćate?
A: T/T, PayPal, Western Union.

P: Je li narudžba uzorka prihvatljiva?
O: Da, za većinu baterija uzorci narudžbi za ispitivanje kvalitete su razumni i prihvatljivi.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

P: Koje je vaše jamstvo?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Za oštećenja nastala, poput ispupčenja/zavarivanja baterije, baterije bez zaštite BMS uzrokovane punjenjem.
