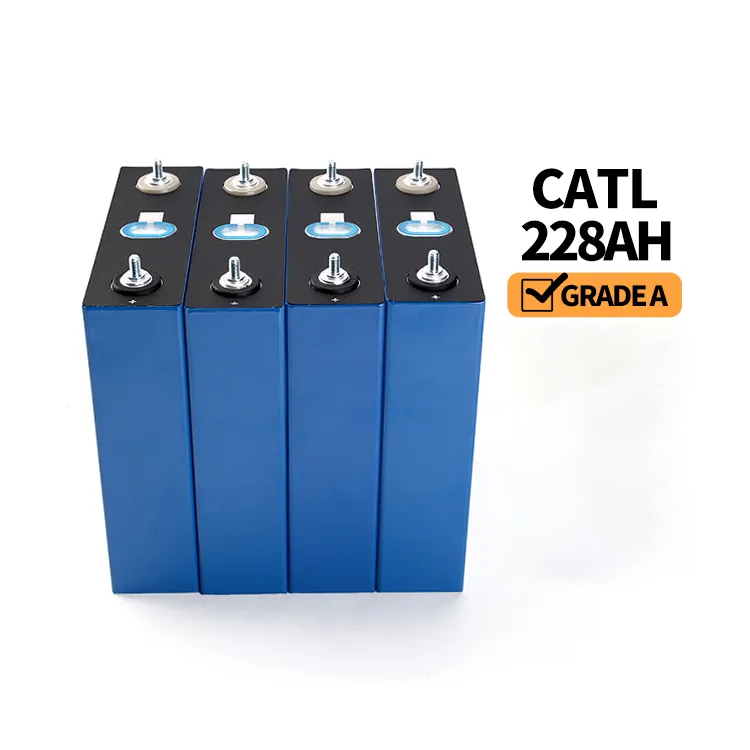

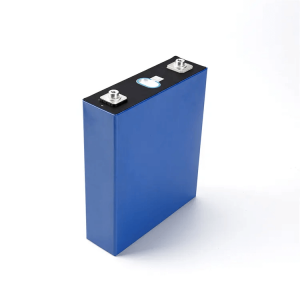

CATL 230Ah 228Ah 3.2V Lifepo4 Prismatic Lithium Battery Cells For Solar Bank Energy Storage

2023-06-08 06:11

Specifikacija

Supplier	SVE U JEDNOM Battery Technology Co Ltd
Model	CATL LF228 230Ah LiFePO4 3.2V Battery cell
Stvarni kapacitet	Tested over 230Ah
Nazivni napon	3.2v
Maksimalna struja pražnjenja	1C/ 230A
Maks. Napon punjenja	3.65V
Otpornost na izmjenični otpor	≤0,5 mΩ
Temperatura punjenja	0-60℃
Temperatura pražnjenja	-30-60 ℃
Ciklus Život	6000 times SOC 80%
Težina	4,2 kg

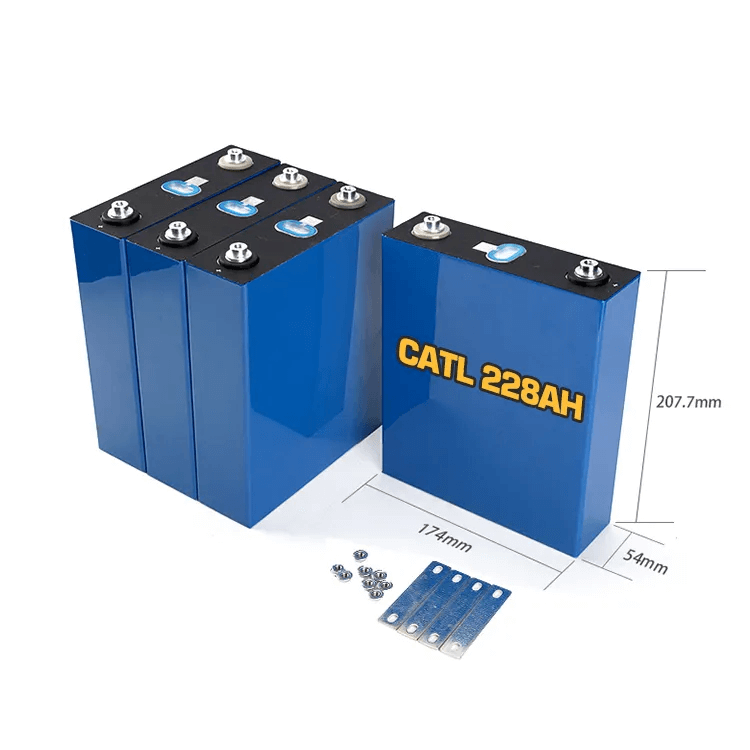

Dimenzije (D * Š * V)	17454208mm
Prijave	Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power

Značajka
1. Visokog kapaciteta i stabilnog napona pražnjenja
2. Dulje radno vrijeme s visokim performansama
3. Mala težina male veličine
4. Izuzetna svojstva pražnjenja i mali unutarnji otpor
5. Nema efekta memorije, dobre sposobnosti pražnjenja i velikog opterećenja i otpornog na visoke temperature
6. Ne zagađuje za zaštitu okoliša
7. 100% autentična originalna li-ion punjiva baterija
8. Protueksplozijska zaštita i zaštita kruga

9. Long cycle life 5000 times

10. Good consistency, low self discharge

Bilješka

1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6

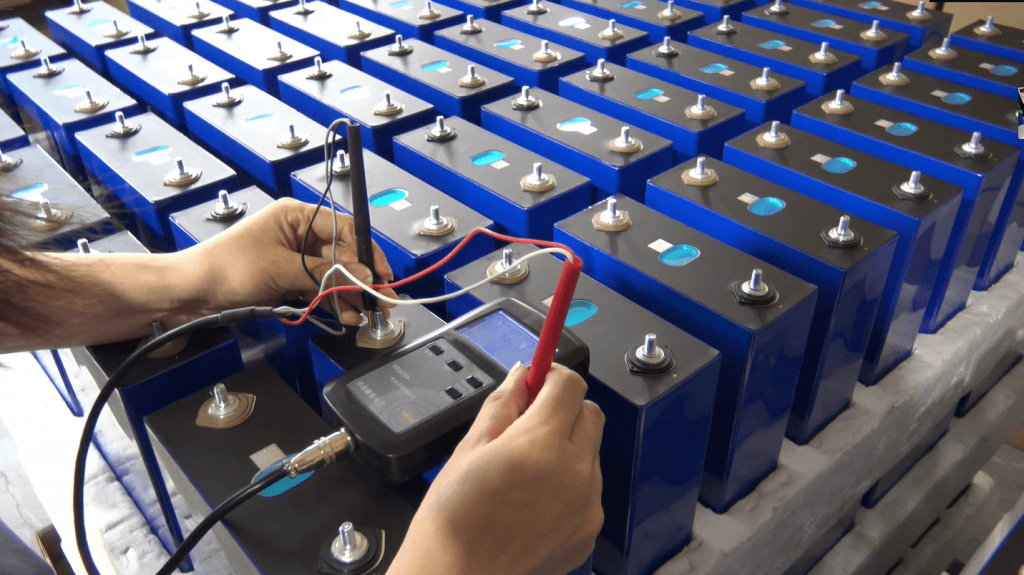

6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.

Important & Warmly Reminder

Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.

Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time，otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.

Ove situacije ne pružaju povrat niti povrat novca
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.

*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.

Kurir i logistika
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.

primjena

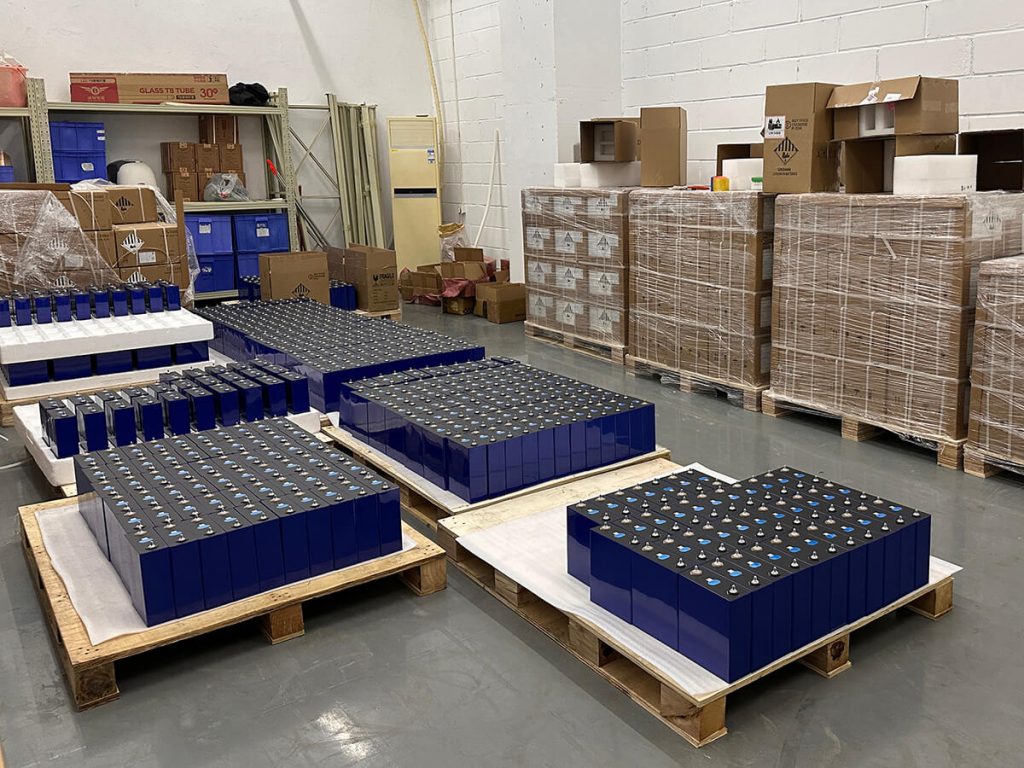

Naša tvornica

Zašto izabrati nas

1. We are a supplier with 10 years' experiences.All our items come with high quality and good after-sale service.

2. Profesionalni, tehnički, proizvodni i servisni tim za vaše usluge.
3. Stabilna kvaliteta - Dođite od vrhunskog dobavljača materijala i savršenog sustava kontrole kvalitete.
4. Konkurentna cijena od bilo kojeg drugog dobavljača.
5. 7/24 usluga za vas, sve će pitanje biti postavljeno u roku od 24 sata.

Pakiranje i otprema

Pitanja

Q1. Mogu li naručiti uzorak za litij-ionsku bateriju?
O: Da, dobrodošli smo uzorak za testiranje i provjeru kvalitete. Mješoviti uzorci su prihvatljivi.Q2. Što je s vremenom vodstva?
O: Uzorak treba 3-5 dana, vrijeme masovne proizvodnje treba 1-2 tjedna za količinu narudžbe više

Q3. Imate li kakvo ograničenje MOQ za litijeve baterije?
O: Dobar MOQ, dostupan je 1pc za provjeru uzoraka

Q4. Kako isporučujete robu i koliko vremena treba stići?
O: Obično isporučujemo DHL, UPS, FedEx ili TNT. Obično treba 3-5 dana da stignete. Zrakoplovna i pomorska isporuka također moguća.

Q5. Kako nastaviti narudžbu za litij-ionsku bateriju?
O: Prvo nam obavijestite vaše zahtjeve ili primjenu.
Drugo citiramo prema vašim zahtjevima ili našim prijedlozima.
Treće, kupac potvrđuje uzorke i polaže depozit za svečanu narudžbu.
Četvrto dogovaramo proizvodnju.

P6. Možemo li potpisati ugovor o tajnosti ako želimo izgraditi dugoročni poslovni odnos?
O: Sigurno, poštujemo zahtjeve klijenata, donijet će vam više koristi.

P7: Dajete li jamstvo za proizvode?
O: Da, na naše proizvode nudimo jamstvo od 12 mjeseci.

P8: Prihvaćate li OEM / ODM?
O: Naravno, dostupna je i prilagođena narudžba s našim zadovoljstvom.

Q9: How long does it take to recharge the battery?
A: usually it takes 5 hours with 20A standard charger.

Bilješka: Mi smo proizvođač baterija. Svi proizvodi ne podržavaju maloprodaju, mi radimo samo B2B poslovanje. Kontaktirajte nas za cijene proizvoda!
