51.2v 65Ah kolica za golf lifepo4 litij-ionska baterija dubokog ciklusa IP67

2024-06-28 03:25

Specifikacija

Model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Nazivni napon	51.2V	51.2V	51.2V	51.2V	76,8 V
Nominalni kapacitet	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58,4V	58,4V	58,4V	58,4V	87,6V
Maksimalna struja punjenja	100A	100A	60A	150A	100A
Maksimalna struja neprekidnog pražnjenja	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Isključni napon	43,2V	43,2V	43,2V	43,2V	43,2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Temperatura punjenja	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Temperatura pražnjenja	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	> 6000	> 6000	> 6000	> 6000	> 6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Razina zaštite	IP67	IP65	IP65	IP65	IP65
Dimenzije (mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
Težina	48.3kg	49 kg	32 kg	71kg	72.8kg
Komunikacijski protokol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



Glavne značajke

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

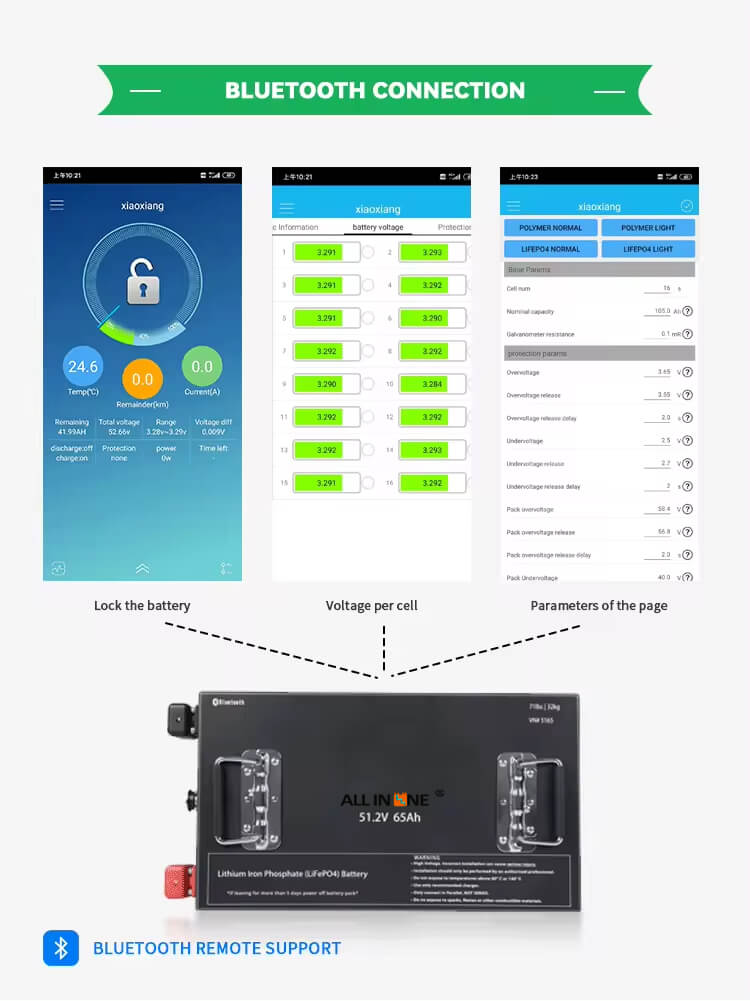

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Obećavamo
1.Svi proizvodi će biti testirano 100% prije otpreme kako bi se osiguralo da proizvod nema nikakvih problema s kvalitetom.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



primjena

Naša tvornica

Pakiranje i otprema

Pitanja

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

P2: Pružate li uslugu nakon prodaje?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

P3 Koja je prednost vaše tvrtke?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

P4: Prihvaćate li OEM / ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Općenito govoreći, oko 25-30 dana, ovisno o različitim stavkama nakon uplate i potvrde o uzorcima.

Q6:Are your battery real capacity?
A6: Sve naše baterije s ocjenom A, 100% novim i stvarnim kapacitetom.

P7: Jeste li tvornica ili trgovačko poduzeće?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

P8: Kakve certifikate imate?
A8: Možemo pružiti CE, ROHS, FCC, IEC62133, MSDS, UN38.3 ako je količina vaše narudžbe velika.
